Project Timeline: August 2025 – October 2025

Al Sadaat Consolidate delivered a comprehensive MEP electrical engineering and documentation package for the Al Bani Megaalmur Mosque project, commissioned by the Ministry of Awqaf & Religious Affairs. Our team produced a complete set of electrical drawings covering all building levels, from site plan electrical services through to detailed power plans, single line diagrams, distribution board schedules and load calculations — ensuring full compliance and construction-ready documentation throughout.

Key Project Highlights:

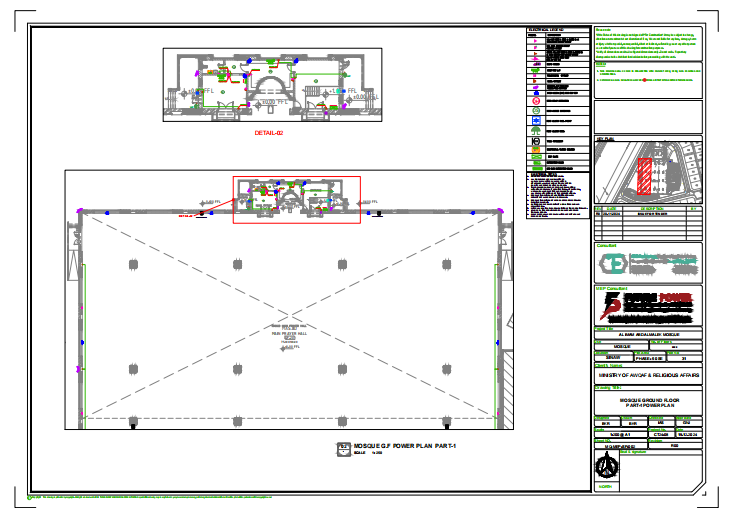

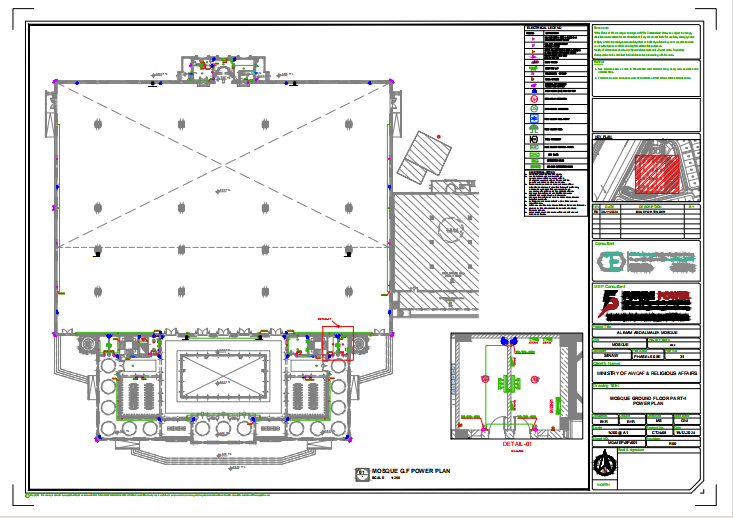

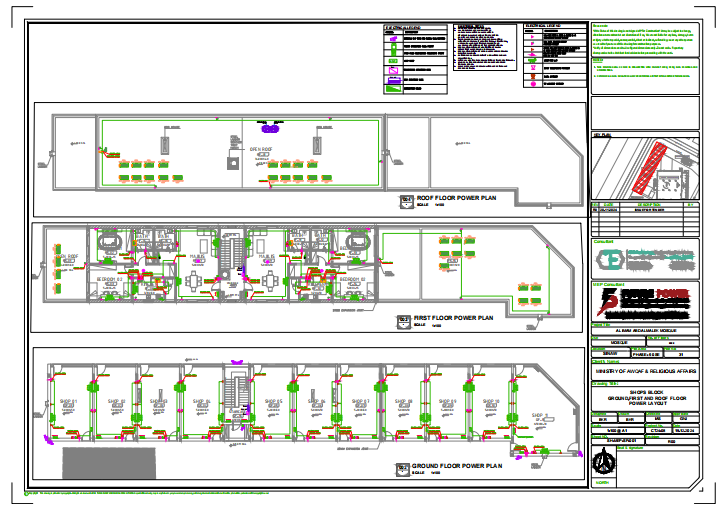

🕌 Mosque ground floor power plan with detailed electrical layout covering main prayer hall, entrance, ablution areas and all supporting spaces across two parts

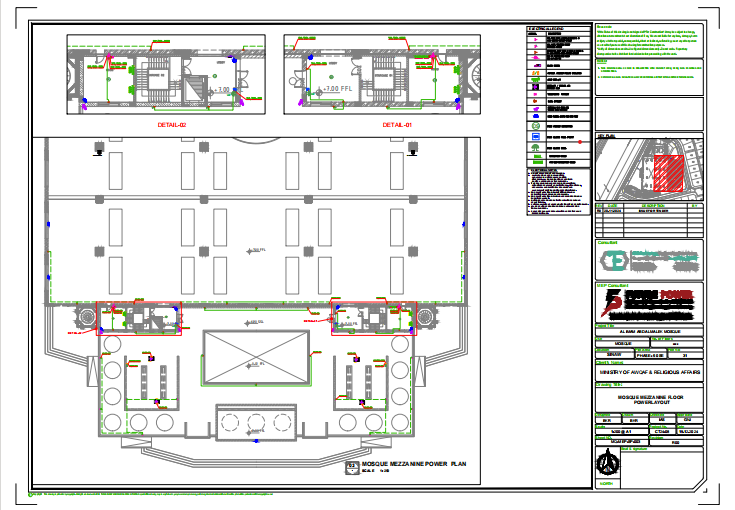

🏛️ Mosque mezzanine floor power plan with detailed circuit routing, distribution board positions and electrical fixture layout

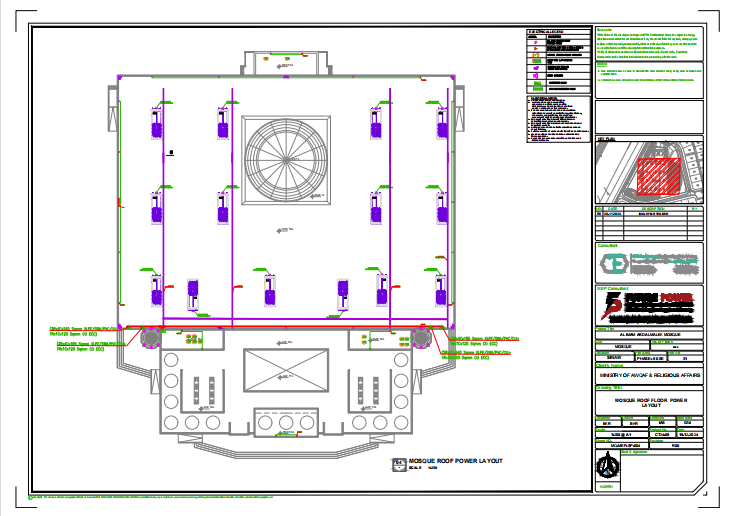

🔵 Mosque roof floor power layout covering rooftop electrical services, AC units, cable routing and power distribution

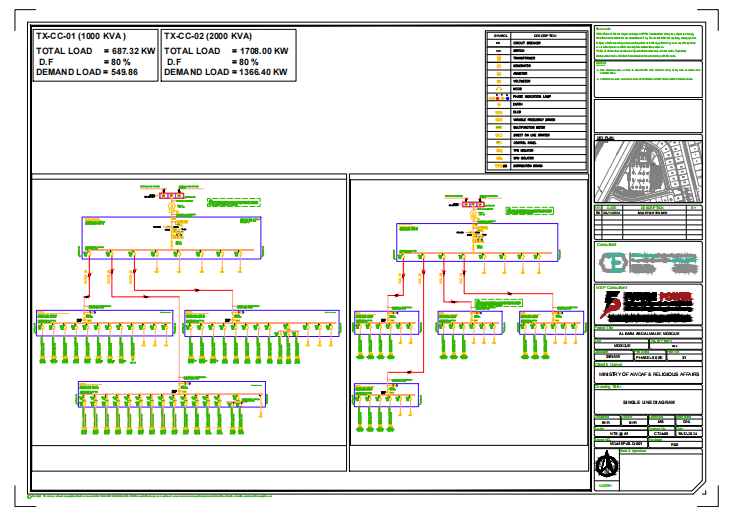

⚡ Single line diagram for two transformer units TX-CC-01 (1000 KVA) and TX-CC-02 (2000 KVA) with full load calculations and demand load documentation

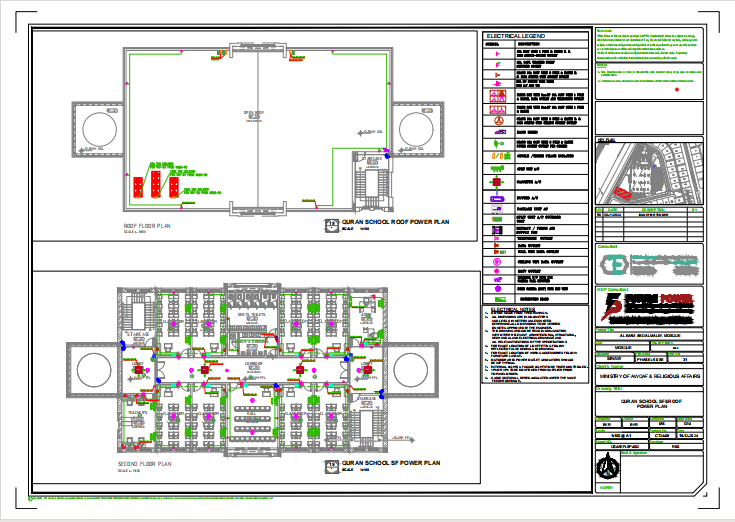

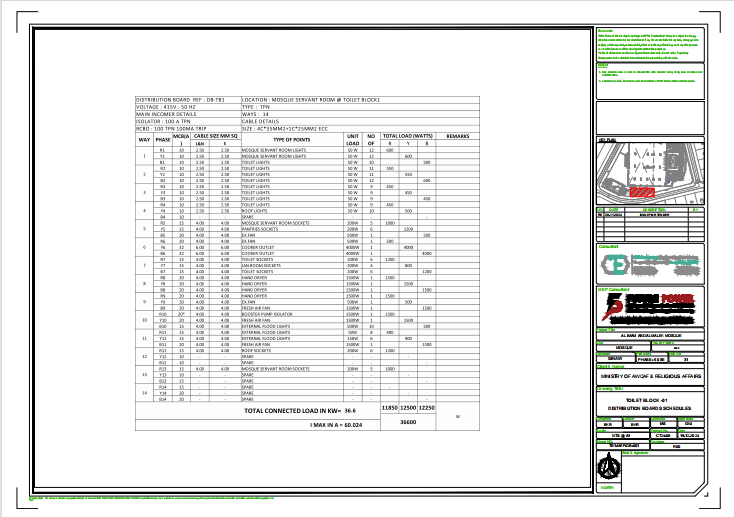

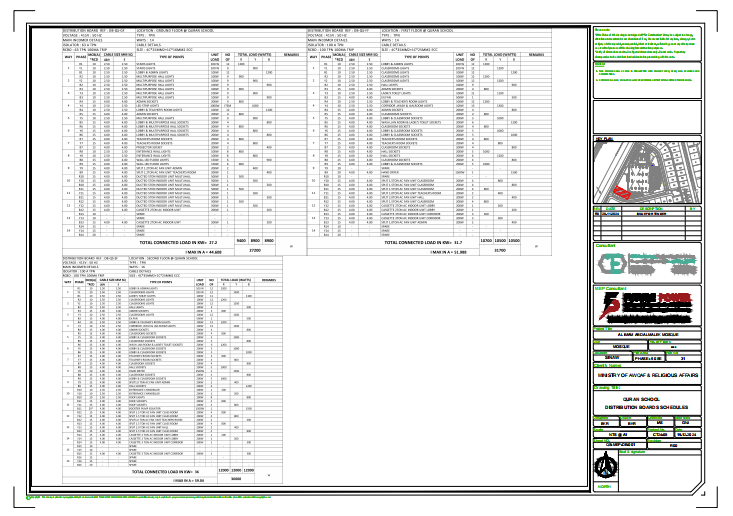

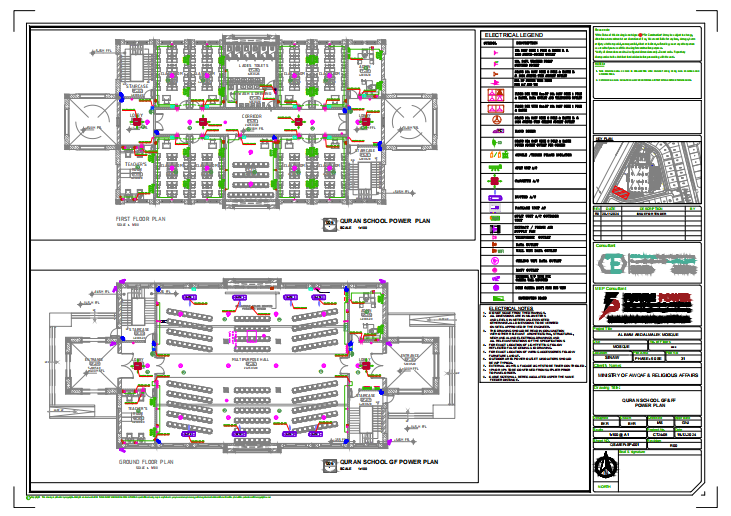

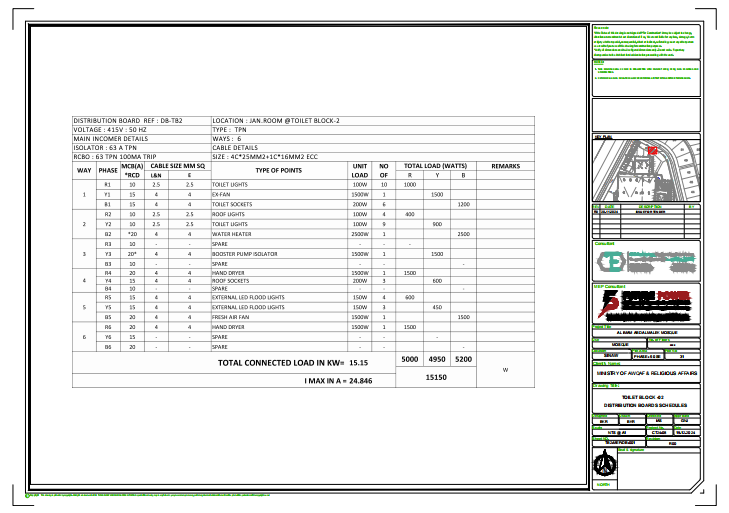

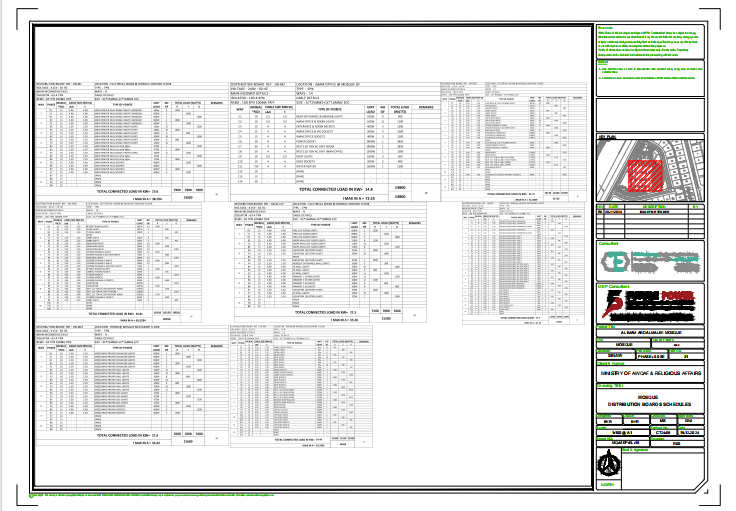

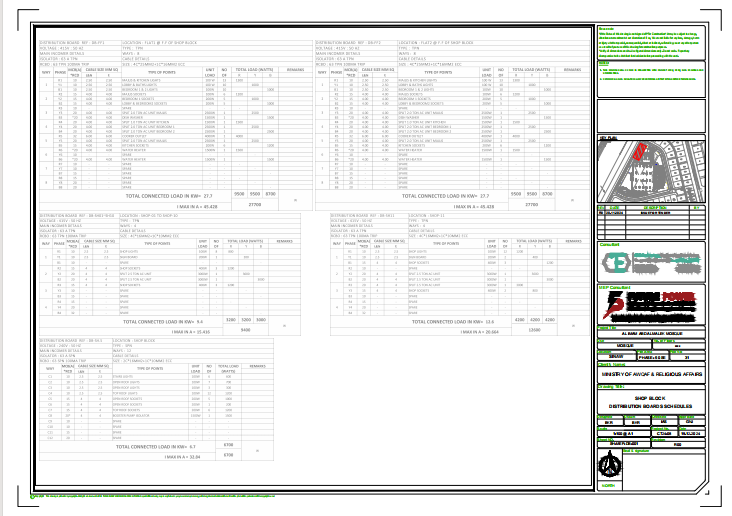

📋 Comprehensive distribution board schedules for mosque and Quran school blocks with complete load schedules, connected load calculations and circuit details
🌐 Site plan electrical services layout showing full external electrical network, incoming supply routing, substation positions and site-wide cable distribution

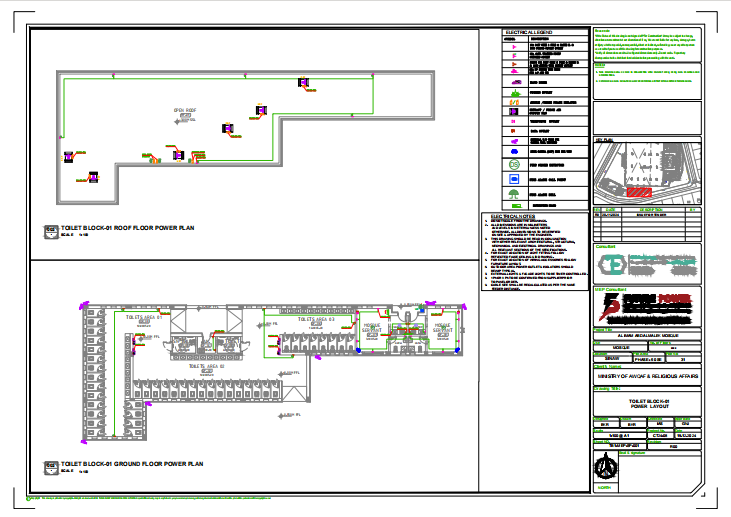

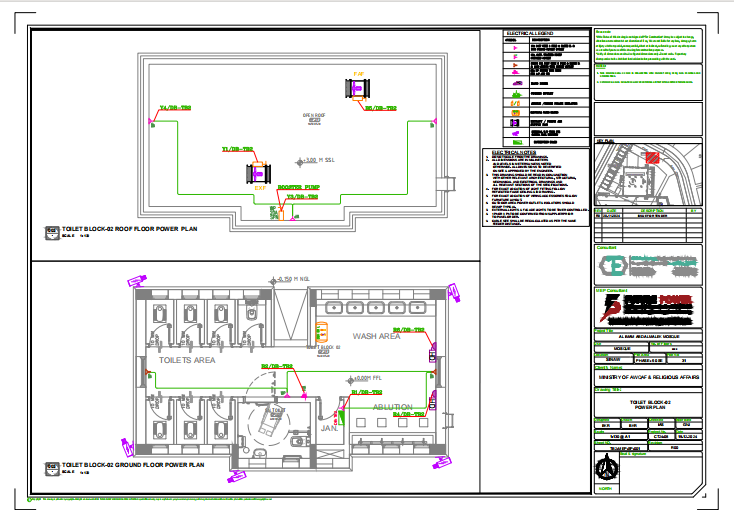

🚽 Toilet block roof floor and ground floor power plans with booster pump, SSL tank and complete circuit documentation
